DESCRIPTION

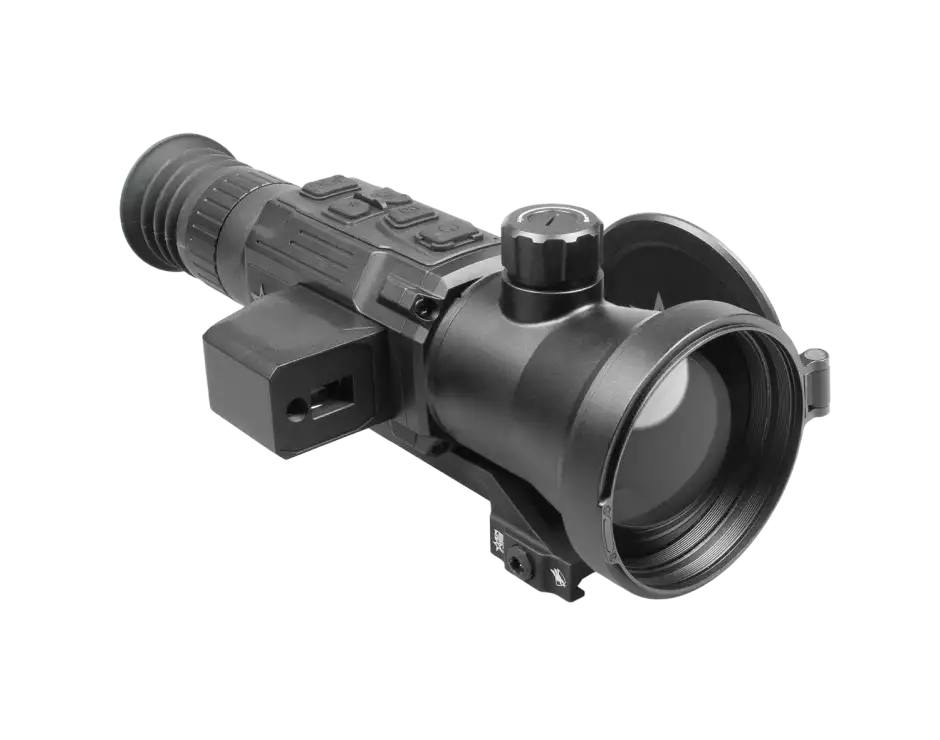

The AGM Evolver LRF 1280 provides unrivaled image quality in a compact housing. It is equipped with a 65mm Germanium lens and a 1280×1024 resolution thermal sensor. It was also built with a fully integrated 1000m laser rangefinder and a new AGM on-board ballistic calculator.
A newly designed eyepiece gives the Evolved a very versatile 2.5x base magnification, which can then be digitally zoomed up to 20x on the high end. Users, while enjoying a base magnification for close-range engagements, can comfortably zoom to 5x and still enjoy a crisp 640 resolution before zooming further.
New powerful imaging algorithm and new semicircular display give shooters a feeling of precision and sophistication. Large sturdy buttons were designed to aid gloved fingers in cold winter weather. The removable rechargeable NE-4400 battery offers robust and easy-to-install battery systems.
KEY FEATURE
- 12ÎĽm thermal detector
- High thermal sensitivity, NETD < 18mK
- Fast 50Hz imaging
- Built-in laser rangefinder
- Adjustable color palettes
- High resolution OLED display
- Various reticle types and colors
- 1x, 2x, 4x, 8x digital zoom
- Built-in EMMC storage (64 GB)
- Wi-Fi data transmission
- Standby mode
- On-board video/audio recording and image capture
- More than 4 hours battery life
- External power supply compatibility
- Waterproof & shockproof
STANDARD ACCESSORIES: Quick Release Mount, NE-4400 batteries (2), NE-4400 battery Charger, Type-C USB Cable, Lens Tissue, Carrying Case
OPTIONAL ACCESSORIES: Hard Waterproof Case, Cleaning Systems
SPECIFICATIONS
| Sensor Type | 1280 Ă— 1024 12ÎĽm VOx Uncooled Focal Plane Array |
| NETD | Less than 18 mK (@25°C), F#=1.0 L |
| Frame Refresh Rate, Hz | 25 |
| Objective Lens | 65 mm; F/1.0 |
| Optical Magnification, x | 2.5× – 20× |
| Field of View (HxV) | 13.5° × 10.8° |
| Eye Relief, mm | 45 |
| Diopter Adjustment | -5D to +3D |
| Detection Range, m | 3250 |
| Display Type | 2560 Ă— 2560, 1.03 inch, OLED |
| Laser Range Finder | Up to 1000 m, ±4 m accuracy |
| Laser Wavelength | 905 nm |
| Built-in Memory, Gb | 64 |
| Protection Level | IP67 |
| Operating Temperature Range, °С | -30°C to 55°C |
| Max. Recoil Power | 1,000 g / 0.4 ms |
| Battery Type | One replaceable rechargeable NE-4400 Li-Ion battery (two NE-4400 batteries included) |
| Battery Life at 22°C, h | 4 hours |
| Dimensions (w/o mount), mm | 270 Ă— 115 Ă— 88 |
| Weight (w/o mount and battery), kg | 0.79 |
